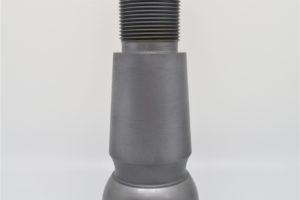

Ball Stud

221-5305 HEADER
click on the image to enlarge

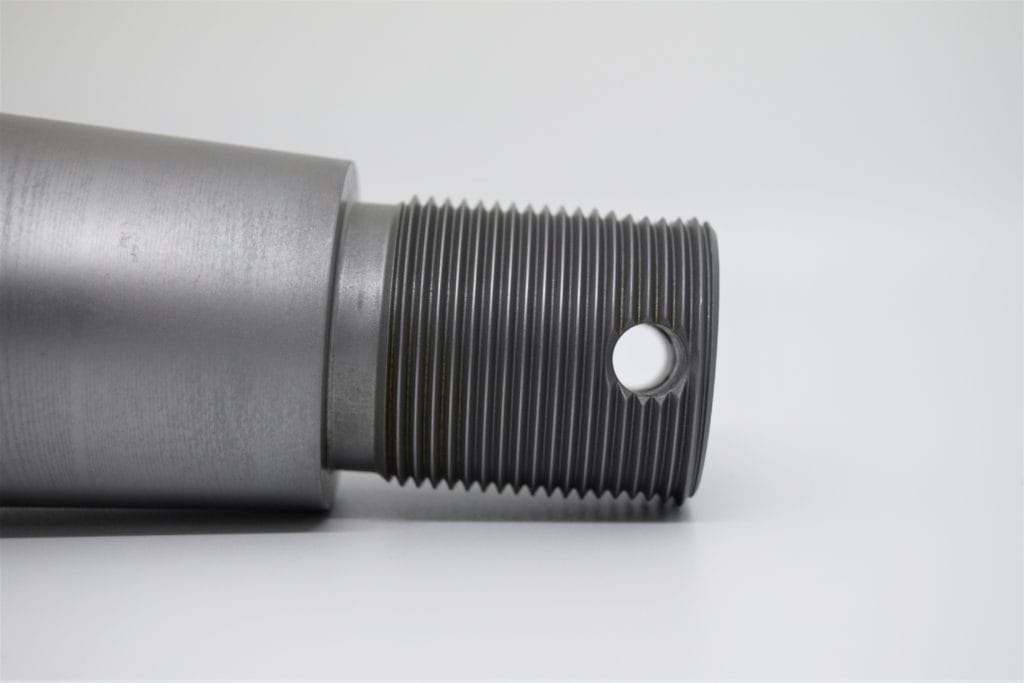

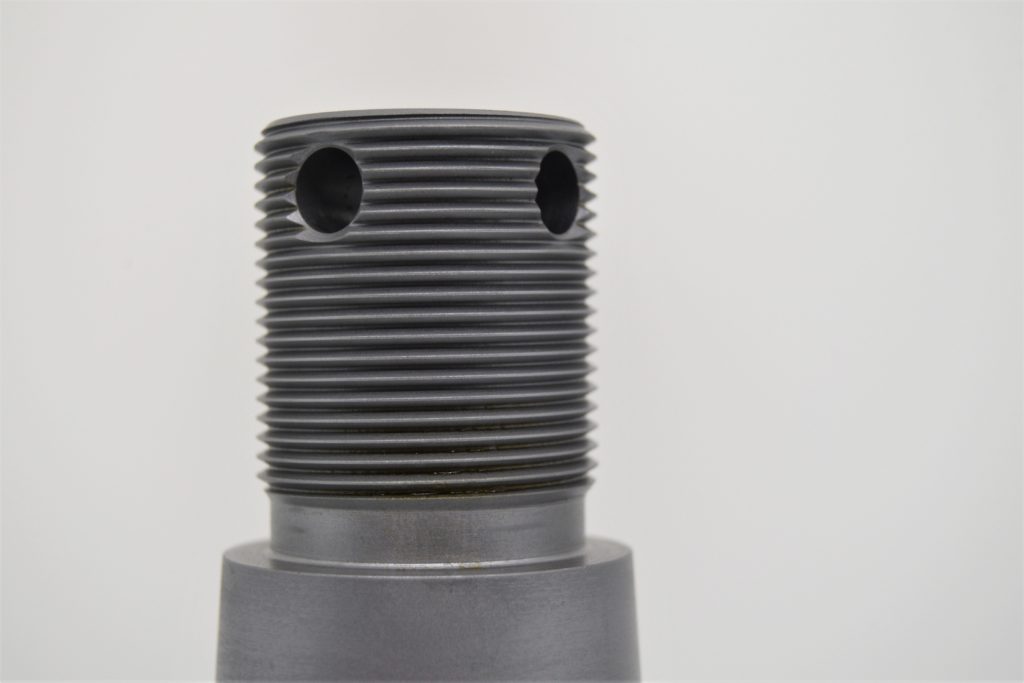

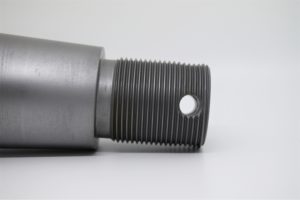

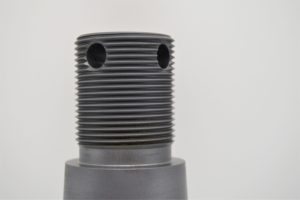

National Technologies was contracted by a customer in the heavy machining industry to manufacture the ball stud profiled shown here, to be used within a steering assembly component. Utilizing our modern Haas lathe, and Haas mill equipment, 41 B-45 half hard steel material was shaped with CNC turning techniques to meet the 6.618” configuration. A tight 0.003″ tolerance was held throughout. The precision detailing work was completed with threading and drilling processes. Heat treatment was performed for increased strength and wear resistance, meeting the Rc 58 minimum hardness specification. The unit was polished to a smooth 32 micro finish, and the component was inspected for accuracy and integrity with visual and dimensional inspection methods.

We completed 16,585 units for this customer after a turnaround time of 4 weeks. The original contract for this part consisted of a small order, manufactured under a tight deadline. The customer was satisfied with our competitive pricing, rapid turnaround time and accurate results and awarded NTI with the opportunity to fabricate a family of similar parts. We welcomed the challenge and upgraded our equipment with a new three machine cell to ensure the efficient fabrication of these components. For more details about this steel ball stud fabrication or the other machining capabilities please see the table below or contact us directly.

CNC Turning Project Highlights

Product Name

Ball Stud

Product Description

This ball stud is used within a steering assembly component.

Capabilities Applied/Processes

Saw Cutting
CNC Turning


Heat Treating

Equipment Used to Manufacture Part

Band Saw
Haas Lathe
Haas Mill
Direct Harden
Induction Harden

Overall Part Dimensions


Tightest Tolerances


Material Used

41 B-45 Half Hard Steel

Material Finish

Polished: 32 micro
Hardness: Rc 58 minimum

In Process Testing/Inspection Performed

Dimensional Inspection
Visual Inspection

Industry for Use

Heavy Equipment



Delivery/Turnaround Time

4 Weeks

Delivery Location

United States

Standards Met

Customer Specifications, 2D CAD Drawing
